Car Full HD DVR

Key Function Description:

1) Select the button upwards

Standby or video process short press this button, you can zoom out the digital;

Menu options, adjust the function keys down;

2) menu button

Short press this key to call up the function settings menu;

3) Select the button down

Standby or video process short press this button, you can zoom in the digital;

Menu option, select the function key down;

4) USB data interface

USB data interface, ① for connecting PC transfer data; ② used to connect an external power supply to the battery or provide power supply;

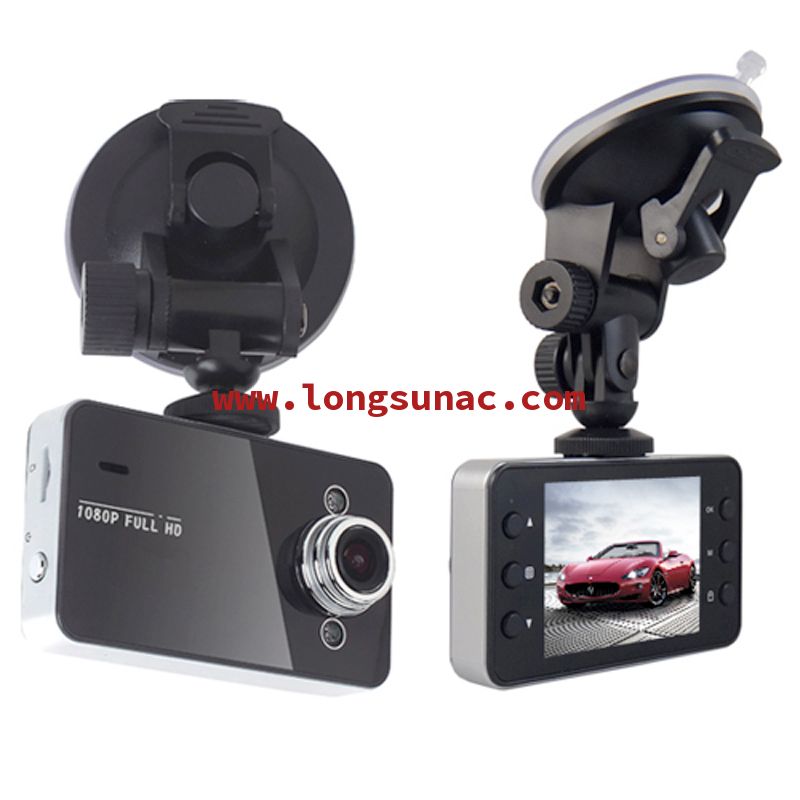

5) bracket mounting hole

Connect the vehicle bracket to install the fixing screw hole;

6) HDMI output interface

HDMI output interface for connecting high-definition display devices;

7) power switch

Long press on / off; short press to turn on or off the infrared night vision light;

8) TF card slot

Memory card slot

9) HOLD button

Press this key during recording, the current video file will be saved as nondeletable file ;

10) mode selection button

Short press this button to switch between video record / camera / playback;

11) OK button

Video and camera confirmation button, at shooting mode, short press this button to start recording, press again to stop recording; at camera mode, short press this button to take pictures;

Menu mode for the confirmation button;

Special Features:

G-sensor function

When the acceleration of gravity reaches 6g (1g = 9.80 m / s ^ 2), the camera will automatically save the current video of the accident as a non-erasable file;

HOLD function

Press this key during recording, the current video file will be save as a nondeletable file;

Colour: custom made

Chipset: Novatek

G-sensor: Built-in

LCD screen size: 2.7LTPS

Lens: 140 degrees A + level high resolution ultra wide angle lens

Language: Russian, Japanese, French, Italian, German, English, Chinese (Simplified), Chinese (Traditional), Korean etc

file format: AVI

Video resolution: maxi. 1080P

Video format: M-JPEG

Color effect: standard

Loop recording: support

Video on/off: automatically turn on when car ignites, turn off when car stalls.

Motion detection function: support

M/D/M/Y: support

Carrier media: Built-in memory (total: 64MB)

Camera mode: 5m Pixel

Photo format: JPEG

Storage card: TF (maximum support 32GB)

Microphone: built-in

Built-in Audio: Yes

Infrared night vision: Yes

Video output: HDMI

Video format: PAL / NTSC

Current frequency: 50HZ / 60HZ

USB function: 1: USB-Disk, 2: PC-Camera

Power interface: 5V 800ma

Battery: Built-in 600mAh
